LED Spot-Adjusted Examination Light KS-Q5 Small Wall Mounted Examination Light Medical LED Light Therapy

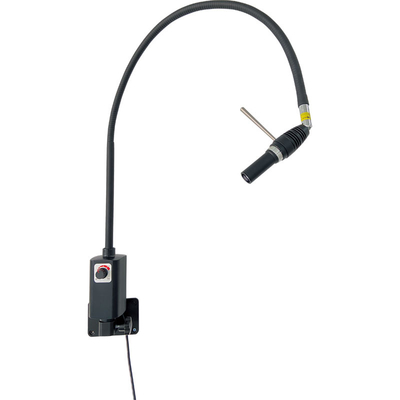

LED Spot examination lamp KS-Q5
1. By adopting multilayer film optics technology, KS-Q5 LED spot examination lamp gathers and enlarges through optics, making common of giving out light effect to become clearly and light spot even high-quality light flat surface effect. It is extensively applied in the industry, medical, treatment, jewelry, photograph, scientific research etc.,It is currently more advanced lighting equipments at home and abroad.
2. Traditional and the most popular medical spot examination lamp with the handle on the lamphead, integrated with the switcher.
3. Facula size is adjustable.
4. Super long articulated arm reach 100cm for easy position
5. IR-free technology from LED light source reduces the sensation of heat for the patient and doctor
6. LED service life 40 times longer than Halogen bulb
7. Low energy consumption : 1/3 less than conventional Halogen system
8. Tissue do not dry up as rapidly during the intervention under very low radiation from the light
9. KS-Q5provides "daylight" illumination for truer tissue color rendition and easier diagnostis and treatment.
10. Articulated arm ensures the light is easy to move and position and doese not drift. NO dead-angle examination and long reach range is presented.
11. Ideal for GP practices, E.N.T., Ophthalmology, Gynaecology , small theatre, minor operations and other surgery use
Technical Data | |
Light Intensity | 18,000 Lux @ D=30cm / 7,000 Lux @ D=50cm |
Control System (KS-Q5) | stepless brightness dimmer control |
Flexiable arm | 100cm length flexiable plastic sleeve goose neck |
Lamphead | Diameter=25mm length =130mm handle: 80mm length |
Diameter of Light Spot | 70-150mm @ D=30cm Variable |
Light source | 1x LED bulb |
LED life span | 50,000 hours |
Color Temperature | 4800K-6000K |
Input Connected Load | 100-260V 50/60MHz |
Power consumption | 3W /5W |
Class of Protection | Class II |
Standard Mounting | Wall mounted |
Lamp head
Structure Diagram of lamp head + goose neck arm + control box
Dimmer brightness control system
